Door Interlock System Solution: What It Is and How It Work

A door interlock system links two or more doors so that only one can be open at a time. When Door A is open, Door B stays locked until Door A is fully closed again.

Facilities use interlock systems wherever a room must never open directly to the outside—such as server rooms, laboratories, cleanrooms, pharmacy stores, and high-security areas.

VSH Technology supplies door interlock systems and components for projects across Peninsular and East Malaysia. Send us your door layout and we will help you plan the right setup.

WhatsApp Us for a Free Interlock Design

How a Door Interlock System Works?

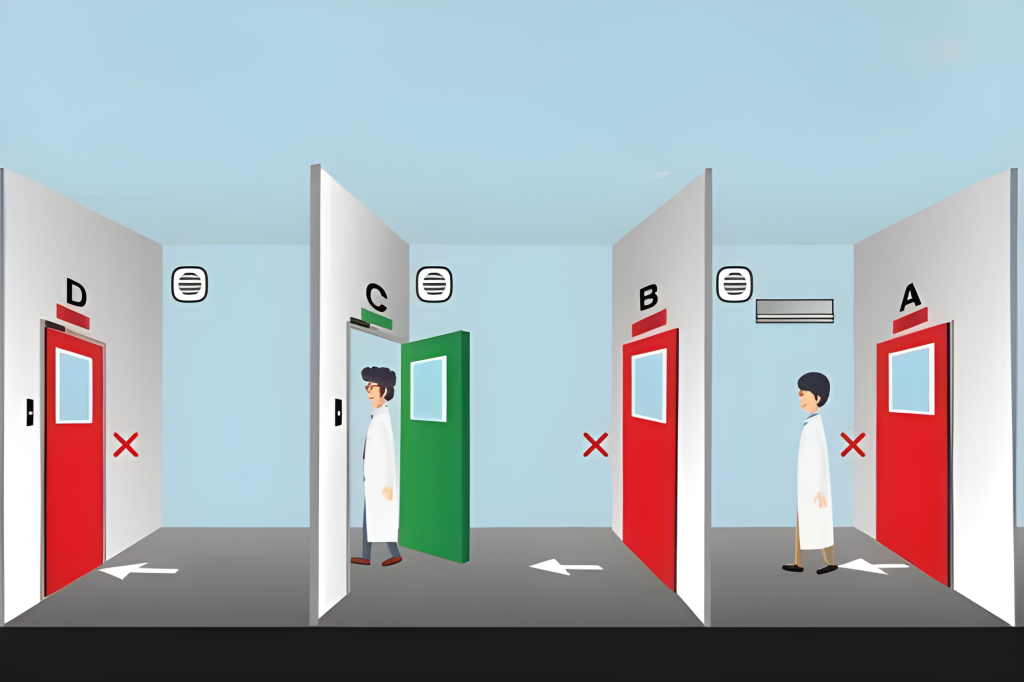

A basic 2-door interlock works in four steps:

1. Door A opens. A person enters using a card, face scan, PIN or exit button. The door sensor tells the controller that Door A is open.
2. Door B locks. While Door A is open, the controller keeps Door B locked. Nobody can open it, even with a valid card.
3. Door A closes. Once the sensor confirms Door A is fully shut, Door B is released.
4. Door B opens. The person walks into the secure room. Door A is now locked until Door B closes.

Here are a few options rewritten in active voice, depending on the tone you prefer:

Direct & Concise:“If someone leaves a door open or fails to close it properly, the other doors remain locked. When connected to an alarm or access control system, the system alerts the security team.

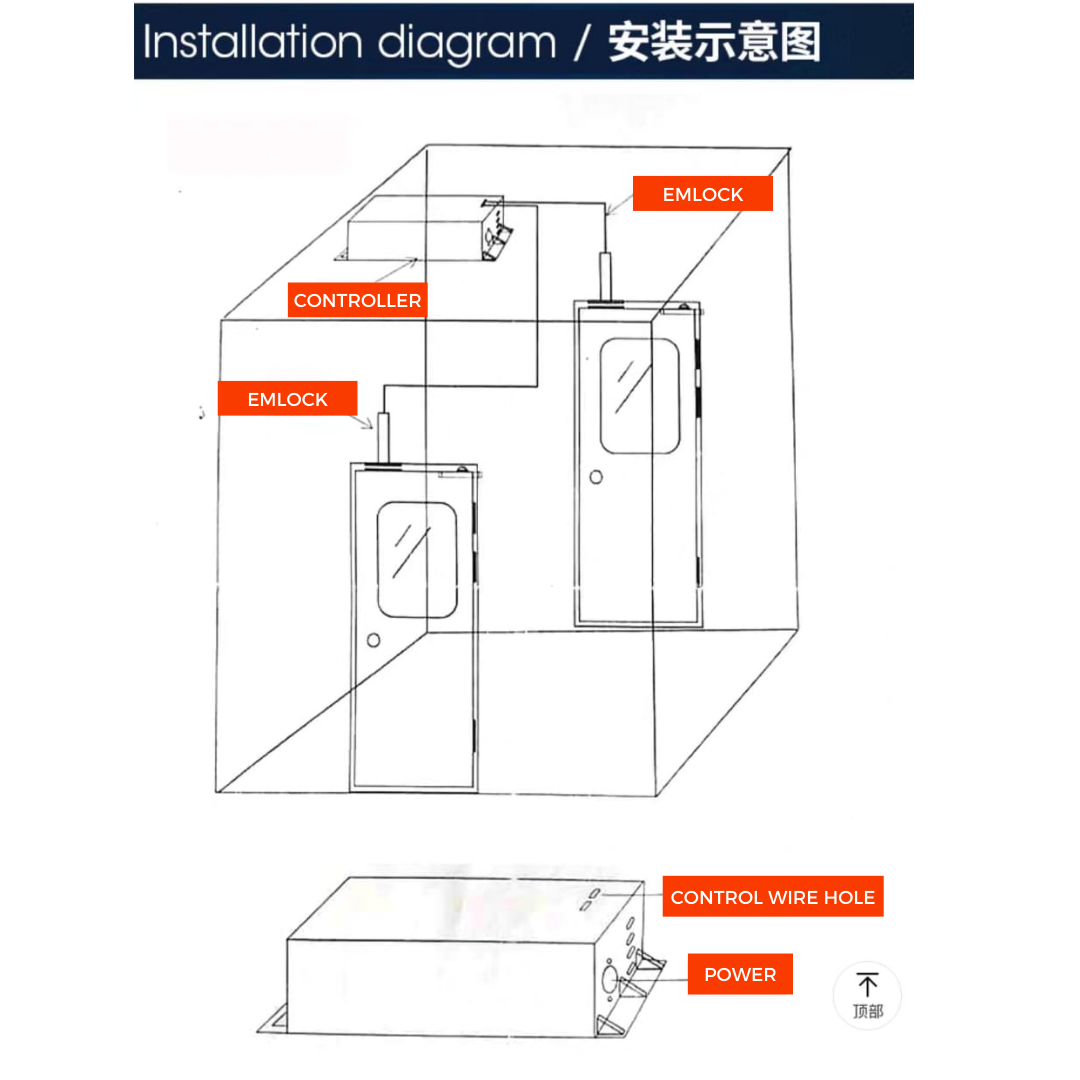

Main parts of the system: interlock controller, electric locks (magnetic lock or electric bolt), door sensors, card or face readers, exit buttons, emergency break glass, and status lights to show when a door is free to open.

Interlock Components We Supply

We supply complete interlock packages or individual parts to match your existing system.

• Access control readers and controllers – ZKTeco, Hikvision, EntryPass and HID.
• Face recognition and card readers – for entry at each interlock door.
• Electromagneting locks – magnetic locks and electric bolts.
• Door sensors, exit buttons and emergency break glass
• Access control software – ZKBioSecurity and other platforms to set interlock rules and view door status
• Integration – Integrating the system with CCTV and alarms allows security teams to record and review every door event

Not sure what you need? Send us the number of doors aad a photo or sketch of the layout, and our team will recommend the components.

Where Door Interlock Systems Are Used?

Various settings widely use door interlock systems to enhance security and manage access. Here are some key applications:

1. Data Centers :

Prevent unwanted access and guarantee secure operations to safeguard confidential information and equipment.

2. Laboratories :

Keep experimental surroundings safe by avoiding cross-contamination and unintentional leakage.

3. Banking and finance sector :

Protect high-risk locations, such banks and government buildings, by preventing unwanted access and guaranteeing interior safety.

4. Hospitals and healthcare facilities :

Furthermore, control access to vital places such as wards and drug storage rooms to protect pharmaceuticals and patient safety. By doing so, you ensure the safety and security of critical resources.

5. Industrial Facilities :

Maintain operational safety and restrict illegal access to areas that handle dangerous chemicals or high-pressure equipment to ensure worker safety.

6. Cleanrooms :

In situations where rigorous air purity is essential, maintaining high standards of cleanliness is crucial. For example, maintaining high standards of cleanliness becomes crucial. Door interlocking systems manage door access effectively to prevent contamination.

Why Choose VSH Technology?

• Free project design – tell us your doors and layout, and we plan the interlock setup with you.
• Trusted brands – ZKTeco distributor and Hikvision supplier, with team members certified through the Hikvision Training Camp (2026).
• Local stock in Malaysia – faster supply for your project. WhatsApp us to check availability.
• Technical support after sales – system setting, software training and troubleshooting.
• Nationwide coverage – branches in Puchong, Selangor and Penampang, Sabah, serving Peninsular Malaysia, Sabah and Sarawak.

Frequently Asked Questions

1. What is the difference between a 2-door and 3-door interlock? A 2-door interlock controls one airlock with an entry door and an exit door. A 3-door interlock is used when one airlock connects to two rooms, or when there are two airlocks in a row. Only one of the doors can be open at any time.
2. Can the interlock work with our existing access control system? In many cases, yes. Interlock can be set up with card, face scan or PIN readers. Tell us the brand and model you have now, and we will check compatibility.
3. What happens during a fire or power failure? Interlock doors are normally set up to release when the fire alarm is triggered, and an emergency break glass lets people exit at any time. Please check the final setup with your fire safety consultant.
4. Can we use our existing doors? Usually, yes. Electric locks and door sensors can be fitted to most existing doors. Send us photos of the doors and frames so we can advise.
5. Do you supply outside the Klang Valley? Yes. We supply projects across Peninsular Malaysia, Sabah and Sarawak, with branches in Puchong and Penampang.
6. How do I get a quotation? WhatsApp us with the number of doors, the type of room and a photo or sketch of the layout. Our team will reply with a recommended setup and quotation.
